Coats 50/60/70/80/90 X Series Tire Changers Clickable link text
Not sure what a part is called? Just find the number on the parts diagram image, match it to the number listed on the right then click the text. If it's underlined, its clickable. You will then be taken to that item where you can purchase it. ( on mobile version the diagram appears above the list.)

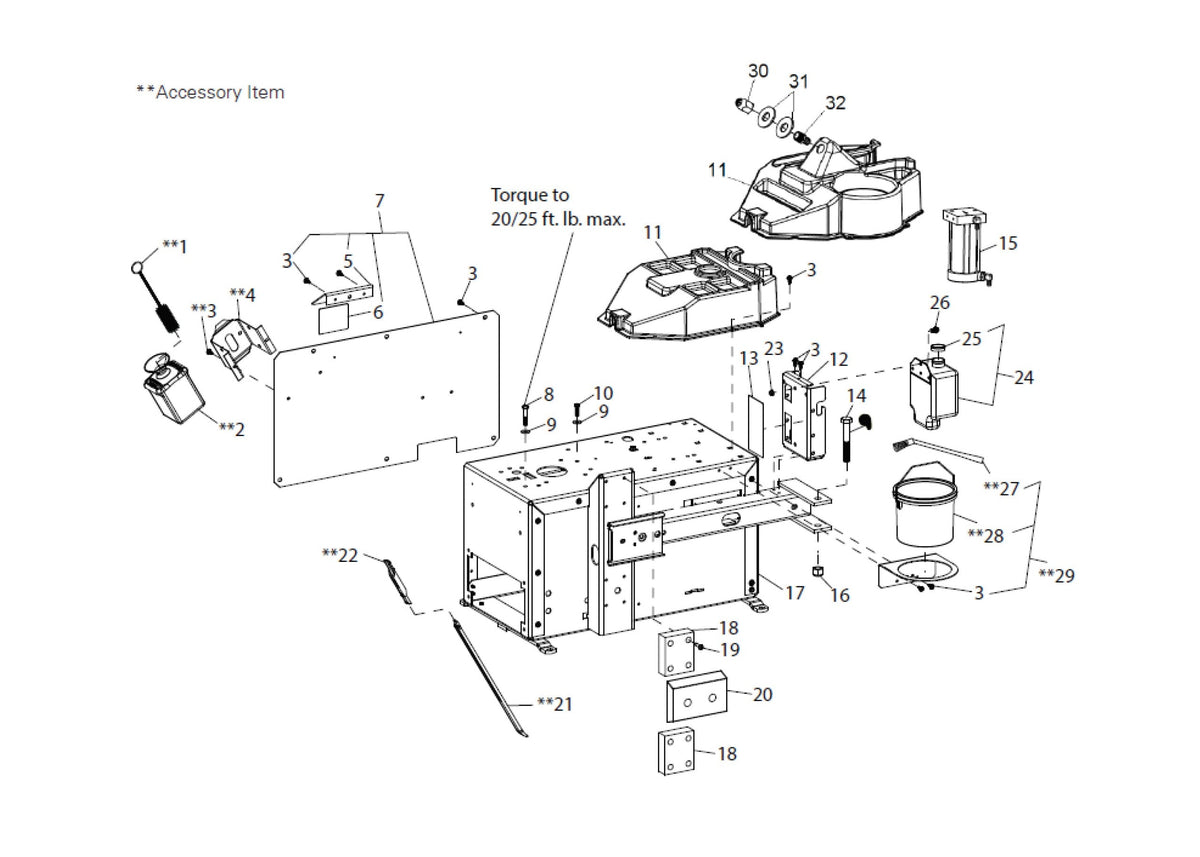

Chassis
1 Lube Applicator
2 Lube Bottle (Red)
3 1/4" Hex Hd Self Tap Screw
4 Lube Bottle Bracket
5 Inflation Pedal Cover
6 Inflation Pedal Decal
7 Metal Side Panel
8 M10-1.5 x 55MM Hex
9 3/8 Flat Washer, Zinc Plate
10 3/8-16 x 1-1/4 Hex Hd.
11 Plastic Accessory Tray
12 Lubricator Bracket
13 Lubrication Notice Decal
14 3/4 x 3-1/2 Screw
15 Water Separator Assy
16 5/8-11 Hex Nut
17 Chassis
18 B.L. Pad, Front
19 5/16-18 x 1-1/4 Screw
20 B.L. Center Pad
21 Bead Lifting tool
22 Lift Tool Bootie Kit, Pkg of 10
23 312-18 Hex Flange Nut
24 Tank Reservoir w/Cap
25 Tank Reservoir Cap
26 5/16-18x5/8 Screw
27 Tire Paste Brush
28 Universal Mounting Paste
29 Lube Bucket Bracket & Brush Kit
30 Inflation Nozzle Cone
31 Washer
32 3/4” Straight Fitting

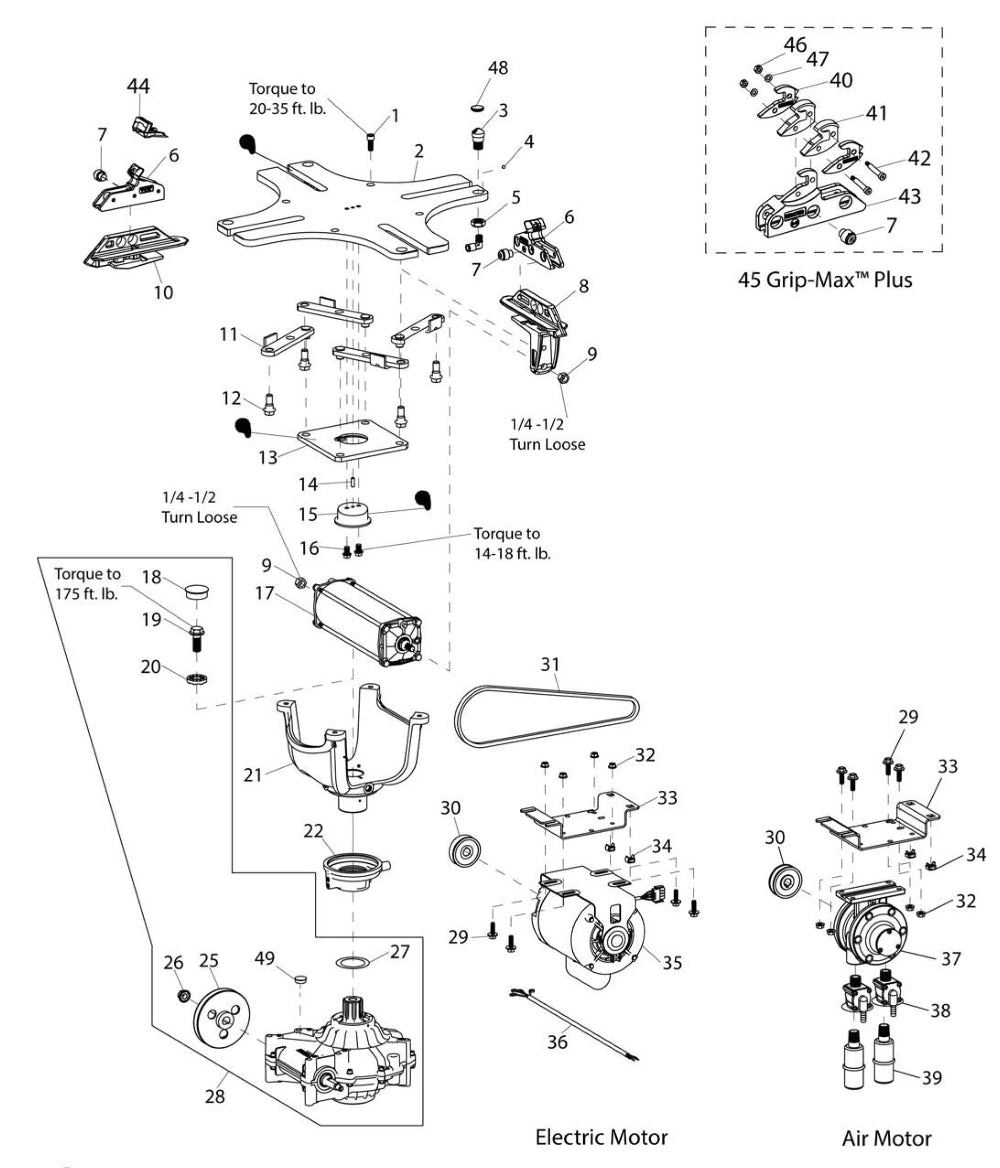

Table Top and Shaft Housing Assembly
1 3/8-16 x 1”,C Scr.
2 Table Top Plate
3 Inflation Nozzle
4 1/4" Steel Ball
5 3/4" Jam Nut
6 Adjustable Rim Clamp
7 Adj. Clamp Plunger/Spring Assy.
8 Carrier/Cover - Cylinder End
9 1/2" Lock Nut, Gr.5
10 Carrier/Cover - Clamp Adj.
11 Pivot Link W/C
12 Clamp Link Bolt
13 Table Top Pivot Plate
14 1/4" x 3/4" Roll Pin
15 Pivot Block
16 5/16-18 x 5/8"Whiz-lock
17 Table Top Cylinder Assembly
18 1-5/8” Dia. Cap Plug
19 16MM x 40mm Hex Head Bolt
20 16mm Molded Washer
21 Spider Assembly
22 Rotary Coupling Assembly
25 Transmission Pulley
26 1/2-13, Hex. Whiz-lock Nut
27 2" X ø2 3/4" x .010 Washer
28 Transmission Kit
29 5/16-18 x 1 Ser. Wash.Hd
30 Motor Pulley
31 Motor V-Belt
32 8182178 5/16-18, Hex. Whiz Lo...Nut
33 Motor Mounting Bracket
34 Tinnerman Sq. Captive Nut 3/8-16
35 Motor, Electric 115V
36 Motor Cable Assy
37 Air Motor, Gast. 6AM
38 Exhaust Valve
39 1/2" NPT Muffler
40 3-position Laminated Clamp Cover
41 Laminated Clamp Plus Grip
42 1/4 x 1-1/4 x #10-24 Shoulder Screw
43 3-position Laminated Clamp Plus
44 Bootie Kit, Rim Clamp, Pkg of 10
45 Grip Max Plus™, Laminated
Clamps, Pkg. of 4
46 #10-24 Rvsble Hex Lk Nut
47 #10 Washer
48 Hole Plug (Table w/o Inflation Jets)
49 Transmission Hole Plug

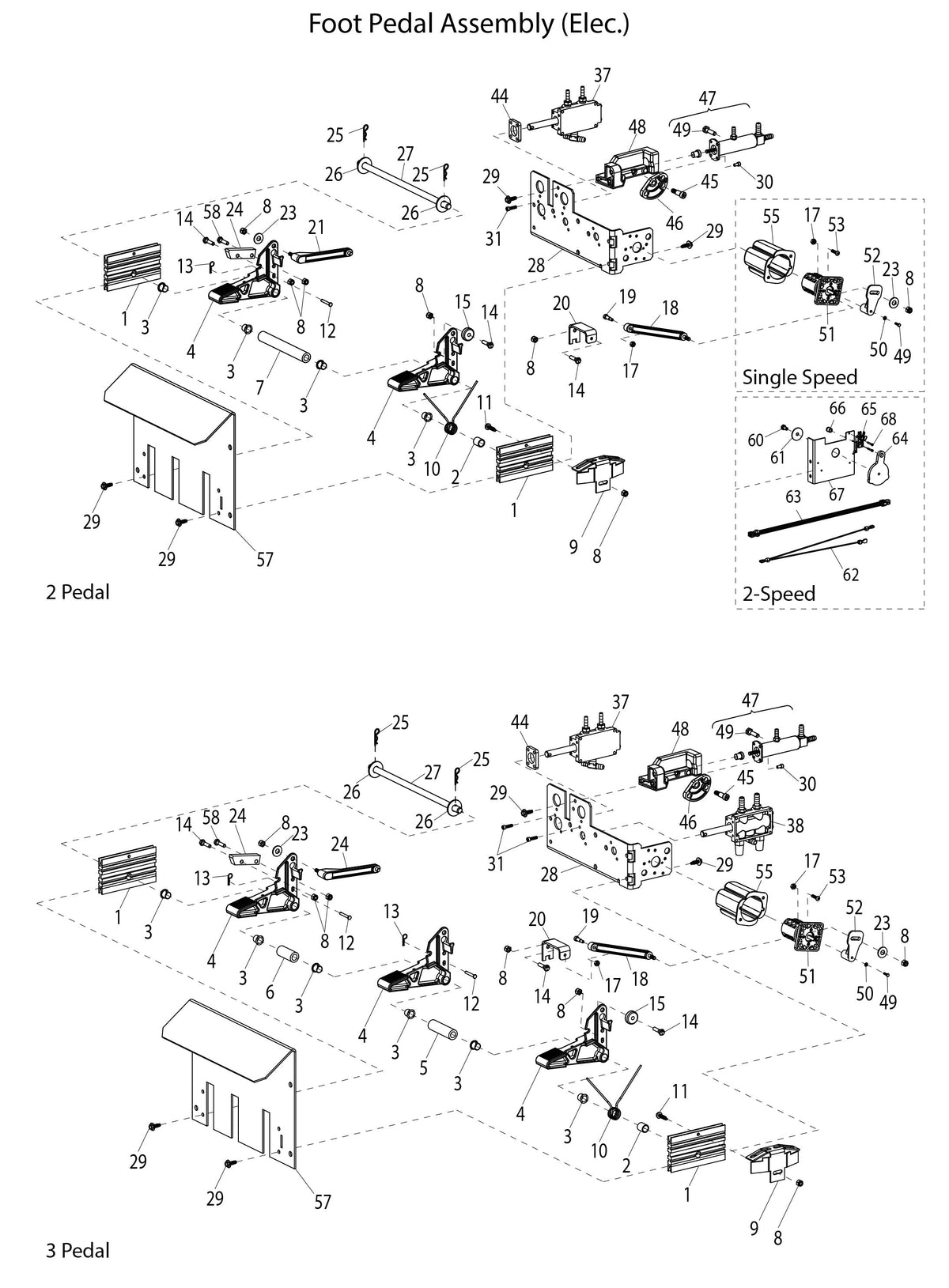

Foot Pedal Assemblies
1 Valve Brkt. Spacer Bar
2 Torsion Spring Sleeve
3 1/2" Nylinder Bearing
4 Standard Pedal
5 Pedal Spacer
6 Pedal Spacer
7 Pedal Spacer
8 1/4-20 Lock Nut, Nyl.
9 Spring Stop Bracket
10 Torsion Spring
11 1/4 x 1
12 3/16" x 1-1/2" Clevis Pin
13 Hair Pin Cotter
14 1/4-20 x 1"
15 Stop Washer
17 10-24 Nylon Insert Lock Nut Gr.5
18 Lever Assembly - Switch
19 10-24 x 3/8
20 Spacer Pedal Lever red
21 Cam Lever Follower
23 5/16" Flat Washer
24 Pedal Stop
25 Hair Pin Cotter
26 Washer
27 Pedal Shaft
28 Valve Mounting Bracket
29 1/4" Hex Hd Self Tap Screw
30 10-24 x 3/8
31 10-24 x 3/4
37 Valve Assembly
38 Valve Assembly
44 Spacer-Valve, Clamp, TT
45 5/16-18 x 1/2 Screw
46 Pivot Link
47 Oil Injector Assembly
48 Block-Lower Stop Pedal
49 Release Valve
50 #6 Internal Tooth Lk Washer
51 Reversing Switch, Kit
52 Switch Actuator Lever
53 10-24 x 5/8
55 Cover-Switch
57 Guard-Foot Pedal
58 Clevis Pin
59 Release Valve
60 1/4-20 x.504
61 1/4" Heavy Fender Washer
62 2-Speed, 2-Wire Harness
63 2-Speed, 4-Wire Harness
64 Disk Switch
65 Foot Pedal Switch
66 1/4-20 Allen Nut
67 2-Speed, Switch Plate
68 #4-40 x 3/4 Lg. SHC Screw

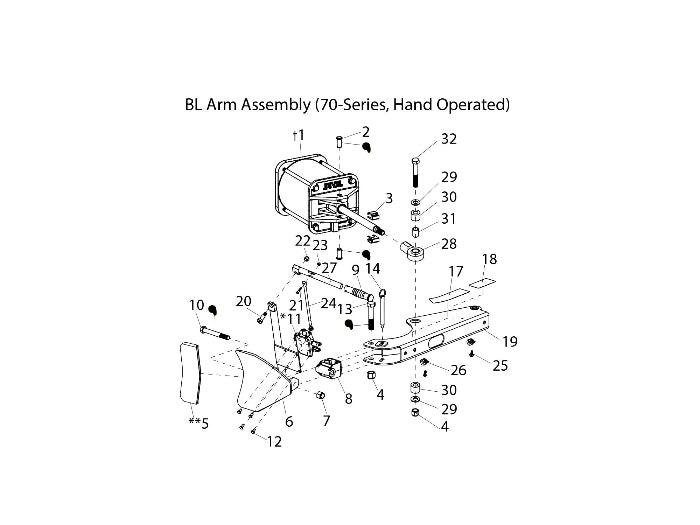

Bead Loosener Arm Assembly
1 BL fitting
2 Clevis Pin
3 Clevis Clip
4 Nylon Insert Lock Nut
5 Shoe Bootie
6 B.L. Shoe, Handle & Pivot W/C
7 5/8-11 Nylon Insert Lock Nut
8 Shoe Pivot Bracket
9 3/4", Rubber Hand Grip
10 5/8-11 x 5" Hex Scr
11 B.L. Arm Valve Assembly
12 1/4-20 x.504
13 3/4-10 x 3 3/4"
14 1/2" Hitch Pin
15 B.L. Spring
16 Pivot Pin
19 B.L. Arm
20 Shoulder Screw
21 10/24 x 1” HHCS Screw
22 3/8-16 Hex Nyloc Nut
23 10-24 Nylon Insert Lock Nut
24 Lever Link
25 1/4” Hex Hd Self Tap Screw
26 Neoprene Cushion Clamp
27 B.L. Lever Assembly
28 Heim Joint
29 Washer
30 Spacer
31 Spacer
32 Screw
